ACOUSTIC MODULAR PANEL

MODEL : [50, 75, 100]RW SERIES

    Self-Supporting panel insulation material insulated with Rockwool for wall and partition application, regering a high degree of resistance to fire, combined with sound absorption.

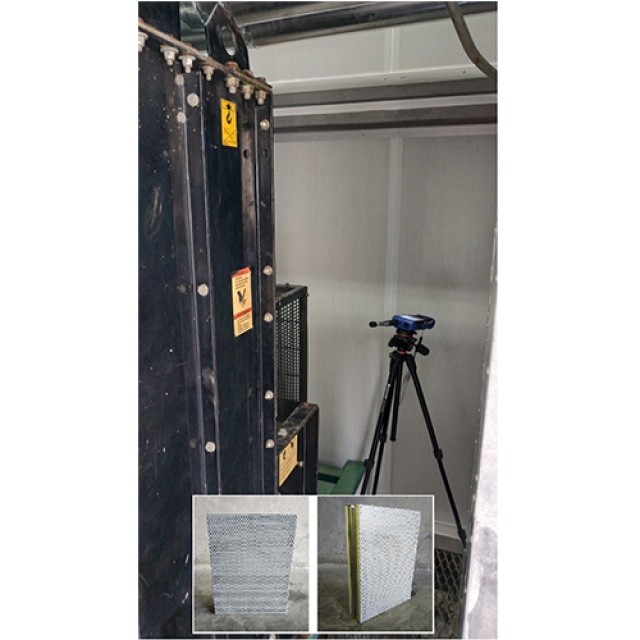

    THE ACOUSTIC MODULAR PANEL is manufactured a micro-ribbed external steel facing, an internal flat, but perforated liner, with an insulation core of high density orientated Rockwool, arranged perpendicular to the plane of the panel and positioned in strips, laid longitudinally with off set joints and transversely compacted, in such a way as to completely fill the void between the two metal facings.

    THE ACOUSTIC MODULAR PANEL is particularly suitable for acoustic control, providing excellent sound absorption qualities over wide range frequency spectrum. The panel design by Sound Insulation Prediction (Program copyright Marshall Day Acoustics 2015) conducted to ISO 354 standards on 50, 75 and 100 mm. thick panels produced between NRC 0.94 – 1.04

    THE ACOUSTIC MODULAR PANEL have been a calculation to ASTM E90 standards by Sound Insulation Prediction (Program copyright Marshall Day Acoustics 2015) and obtained indices of STC = 30-34

ACOUSTIC MODULAR PANEL MODEL : RW SERIES
