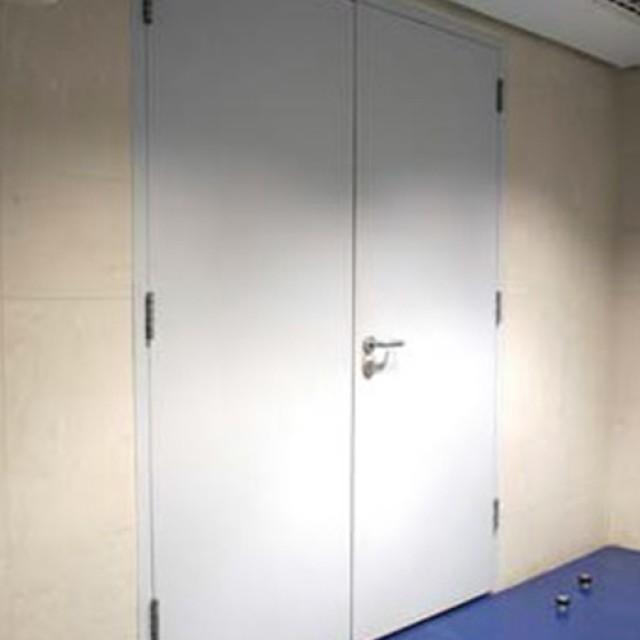

ACOUSTIC STEEL DOOR

DOOR STRUCTURE

Each leaf shall be 45mm thick, fabricated from 1.5mm Zintec steel, double skinned tray formed or interlocking seam design reinforced internally to prevent twisting and to prolong doorset life. Internally the door leaves are in filled with acoustic infill.

FRAME

Manufactured from 1.5mm Zintec steel compatible to leaf strength and weight, formed to a single or double rebated profile in welded form, reinforced and fitted with fixing plates or jacking screws are available as an optional extra. Frame depth can either be 90mm, 100mm, or 150mm.

ACOUSTIC SEALS

Silicone seals are mounted in the flame at top and sides and in bottom of door or in the sill.

APPLICATION

Hotel Rooms, Conference Rooms, Auditorium, Offices, Broadcasting, Post Production and Recording Studios, Language Laboratories, Home theatres, Plant Rooms, Battery Rooms, Kitchens, Audiometric Rooms, Machinery Enclosures & other custom applications.
